    Template Board Cutting Milling Machine Garment Pattern Cutter Thickness 6.0mm

    Ask Lasest Price
    Brand Name : Kaemi or GM
    Price : $4,400.00--$4,999.00/Sets 1-10 Sets
    Model Number : GM1512M6
    Certification : CE,CCC,ISO9001,etc
    Payment Terms : T/T,Trade Assurance Order on Alibaba(All Payment method Supported on Alibaba Available)
    Supply Ability : 500 Sets Per Month
    Delivery Time : 2-5 Working Days
    • Product Details
    • Company Profile

    Template Board Cutting Milling Machine Garment Pattern Cutter Thickness 6.0mm

    Multiple Functions CAD Paper Pattern Template Board Cutting Milling Machine

    Product Description

    Template Board Cutting Milling Machine Garment Pattern Cutter Thickness 6.0mm

    Main Features
    1. Pneumatic Fixation Technology of High Efficiency Template
    2. Integrated Floating Pressure Foot and Vacuum Cleaning Technology
    3. Flexible Modification System for Cutting Starting Points and Cutting Sequence
    4. Independent Templates Editing and Designing System

    ModelGM-1509M3 GM-1512M3 GM1812M3
    Cutting Window(Fabric Scope)1500*900mm 1500*1200mm 1800*1200mm
    Overall Dimension(mm)1900*1450*1100; 1900*1750*1100; 2200*1750*1100
    Product Features

    Compatible with various CAD softwares;Design while the machine is

    cutting

    Cutting Speed500-1500mm/s
    Cutting Thickness≤1.5mm-6.0mm
    Cutting MaterialsPVC, PP,POM,Acrylic, PET, Kraft, etc
    Processing MethodsMill, Cut, Drill, Plot
    Cut ToolsMill-cutter, Graver, Driller, Pen
    Repeatability Precision≤0.01mm
    Software Resolution0.025mm/0.01mm/0.1mm(Optional)
    Communication PortUSB/RJ45 Ethernet
    Buffer Memory Size1M/8M/32M(Can butter more than 1 page)
    File FormatsDXF/HPGL/GPGL/PLT Formats Compatible
    Control Panel9 Keys and LED Display
    Driver SystemMoons Motor driver; High-accuracy Lead Rail, Double Lead Rail on crossbeam
    Supply VoltageAC 220V/110V±10%, 50Hz/3.5KW
    Fuse Value30A/35A
    Working Environment-30~55℃ or -22~131℉
    FastenVacuum/Clamping
    Mill Motor800W/1500W, Water-cooling/Air-cooling, 5000~240000 RPM Inverter
    Waste Elimination220V/1.4KW, Industrial 15L Vacuum Cleaner

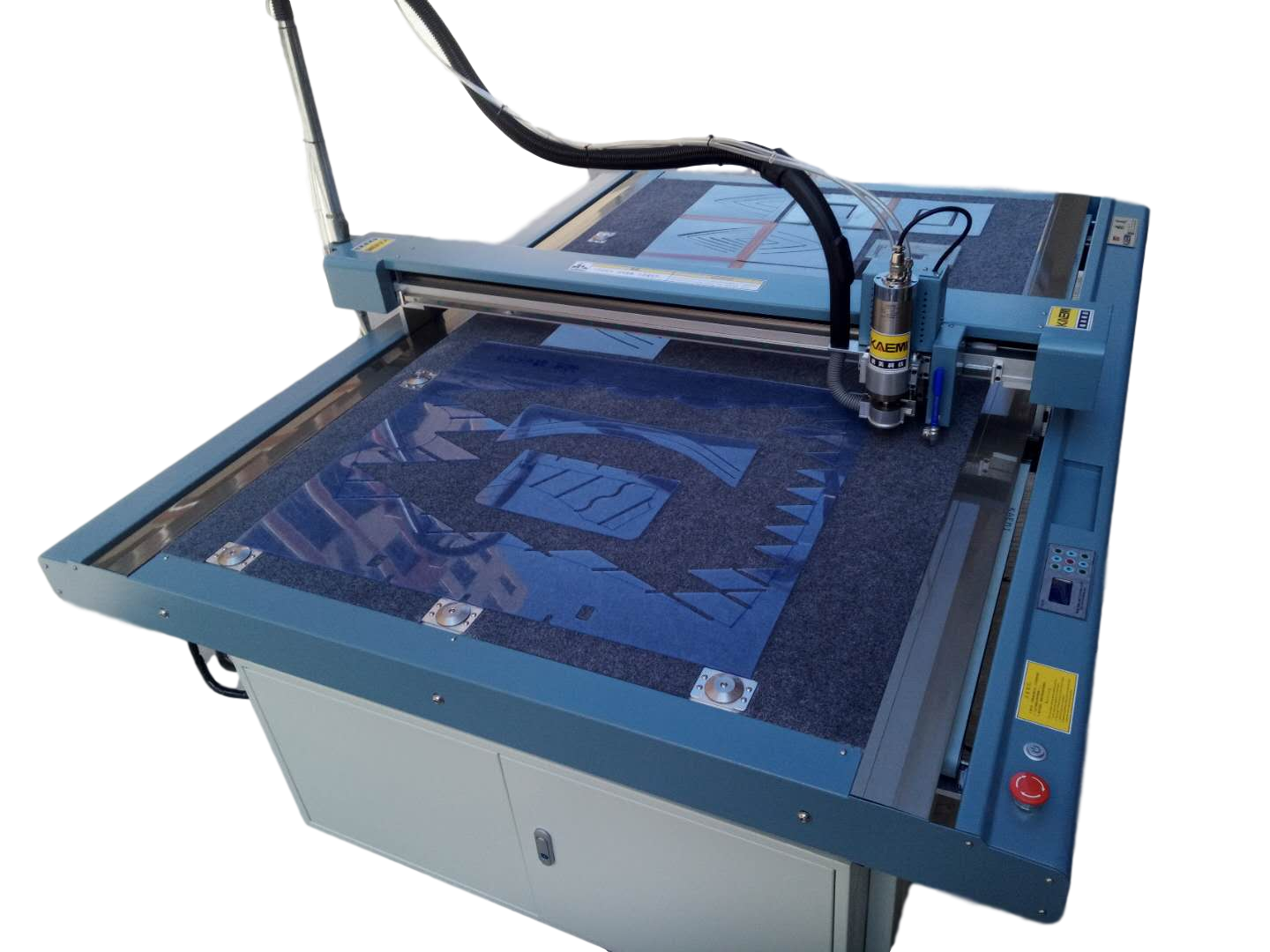

    Product Show

    Template Board Cutting Milling Machine Garment Pattern Cutter Thickness 6.0mmTemplate Board Cutting Milling Machine Garment Pattern Cutter Thickness 6.0mmTemplate Board Cutting Milling Machine Garment Pattern Cutter Thickness 6.0mmTemplate Board Cutting Milling Machine Garment Pattern Cutter Thickness 6.0mm

    Template Board Cutting Milling Machine Garment Pattern Cutter Thickness 6.0mm Template Board Cutting Milling Machine Garment Pattern Cutter Thickness 6.0mm

    Packaging & Shipping

    Template Board Cutting Milling Machine Garment Pattern Cutter Thickness 6.0mm

    Related Products

    Template Board Cutting Milling Machine Garment Pattern Cutter Thickness 6.0mm

    Template Board Cutting Milling Machine Garment Pattern Cutter Thickness 6.0mm

    Company Information

    Template Board Cutting Milling Machine Garment Pattern Cutter Thickness 6.0mm

    Since its establishment, GEMEI has developed a series of cutting machines for clothing, bags, shoes and hats, and obtained a number of software copyright and patent certificates. Based on the profound understanding of China’s garment, luggage and footwear industry, GM series of cutting machine combines the essence of Chinese and foreign technologies, closely combines the advantages of the world's advanced technology and Chinese manufacturing industry, adopts a novel design different from the domestic traditional cutting machine, and fully experiences the design principle of "good at core, simple in shape". After the first continuous drum cutter came into being in the middle part of China , we successively developed the sample cutter for the luggage industry and continuous cutting garment sample cutter.

    "The competition of enterprises is the competition of talents." GEMEI firmly grasps the trend that the world manufacturing
    industry is transferring to the middle part of the world, and has established a research and development team composed of doctors and senior engineers and other high-quality talents,and insists that "innovation" is the eternal power of the development of GEMEI.

    Template Board Cutting Milling Machine Garment Pattern Cutter Thickness 6.0mm

    FAQ

    Template Board Cutting Milling Machine Garment Pattern Cutter Thickness 6.0mm

    1. Q: Are you a manufacturer?
    A: Yes, we are specializing in the r&d production for template cutter/inkjet cutter/pen writing cutter/cnc digital fabric cutter/graph plotter in this field for over 10 years.
    2. Q: How do you pack these products?
    A: Usually packed in wooden case and can pack according to export standard or your requirement.
    3. Q: Is it customizable?
    A: Yes, We have basic sizes commonly applied in the field and can customize according to your requirements.
    4.Q: After-sales service
    A: Yes, professional after-sales team and 24-hour technical support by phone, email or skype
    5.Q: What is your lead time?
    A: Spot goods usually take 2-4 days, and customization takes 5-7 days
