Brand Name : | KAEMI or GM |
Price : | $7.99 --$9.00/sets 1-100 Pieces |
Model Number : | XD3 |
Certification : | CE,CCC,ISO9001,etc |
Payment Terms : | T/T,Trade Assurance Order on Alibaba(All Payment method Supported on Alibaba Available) |
Supply Ability : | 1000 Pieces Per Month |
Delivery Time : | 3-7 Working Days |
MOQ : | 1pc |
#3 and #4 Milling cutter template cutter milling cutter Blade parameters |
Product overview |
Milling cutter is the key cutting tool of milling cutter template cutting machine, and its performance directly affects the precision, efficiency and quality of cutting. |
Main parameters |
(1) Size parameters |

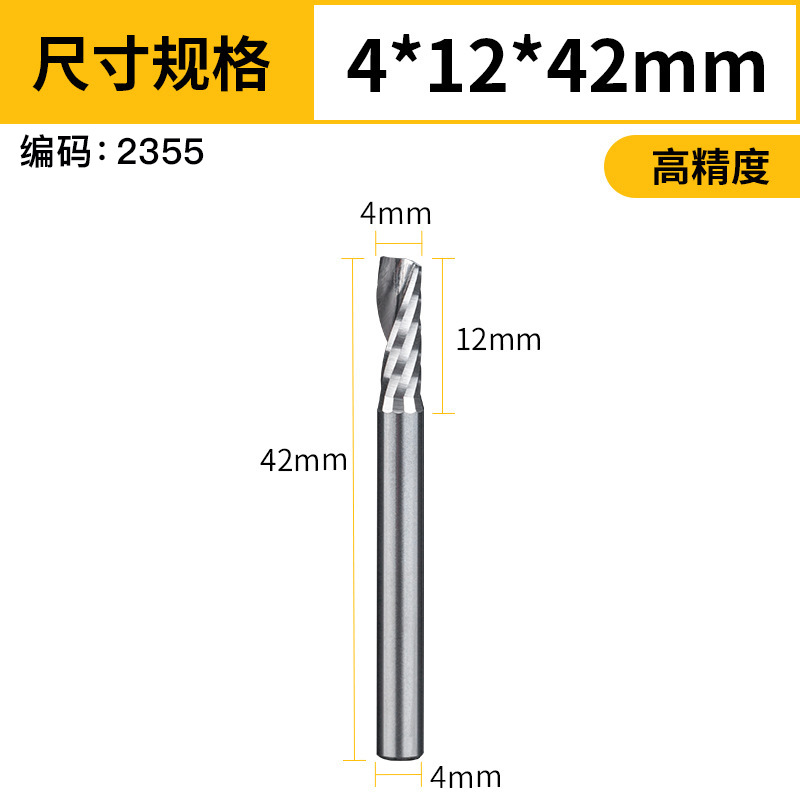

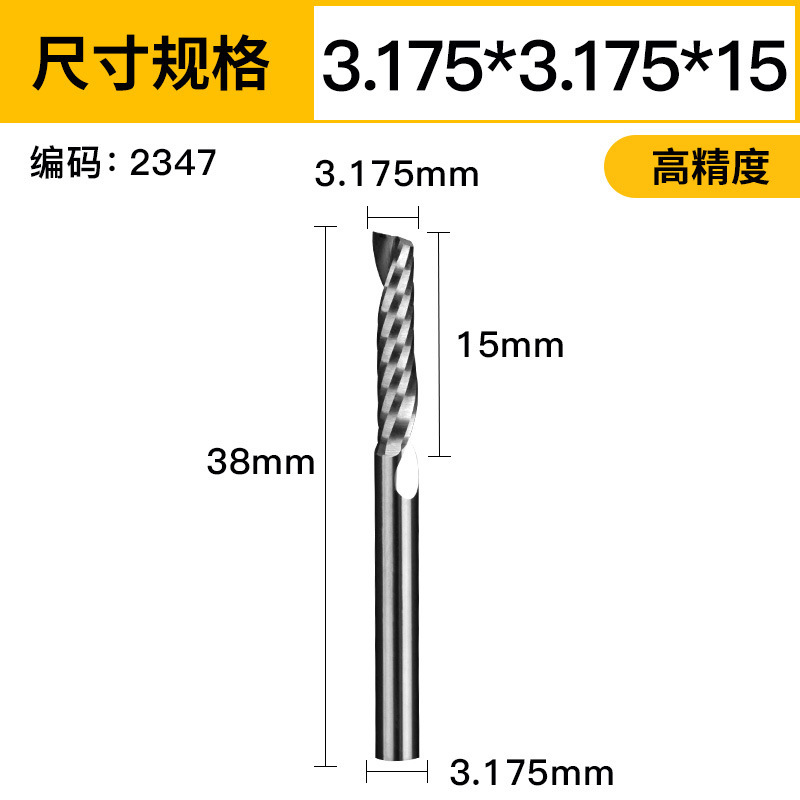

1. Diameter: 3.175mm or 4mm or cutsomized |
2. Blade length: 12mm or customized |

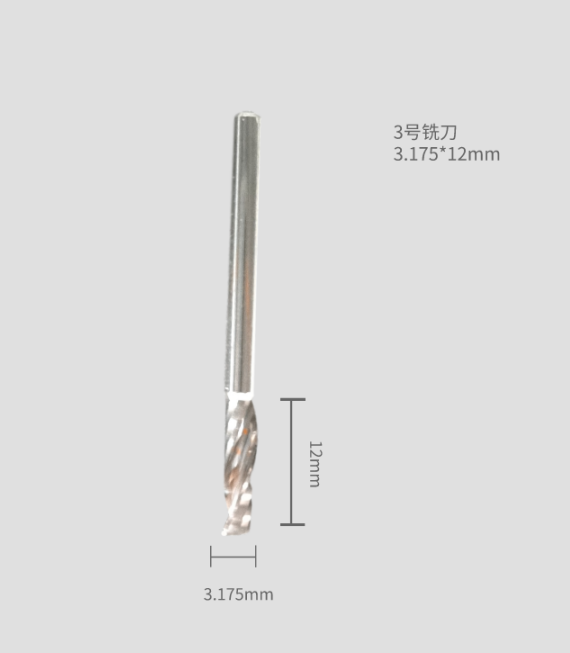

3. Total length: No. 3 milling cutter 38mm; No. 4 milling cutter 42mm |
(2) Material parameters |
1. Cutter body material: imported 5A tungsten steel blade |
2. Coating material (if any) : No coating |
(3) Geometric parameters |
1. Blade number: Single blade |
2. Spiral Angle: 360 degrees |
3. Front corner: None |
4. Rear corner: None |
(4) Performance parameters |
1. Cutting speed: It is recommended to use within 100m/min. |
2. Feed speed: 1800mm/s |
3. Cutting depth: the maximum cutting depth is 6mm |
(5) Precision parameters |
1. Runout accuracy: radial runout does not exceed 0.1mm, axial runout does not exceed 0.1mm. |
2. Edge sharpness: edge roughness Ra is not more than 15μm. |
Use Precautions |
1. During installation, ensure that the milling cutter is firmly installed to avoid loosening. |
2. According to the cutting material and process requirements, select the appropriate cutting parameters. |
3. Check the wear of the milling cutter regularly and replace the milling cutter with serious wear in time. |
Since its establishment, GEMEI has developed a series of cutting machines for clothing, bags, shoes and hats, and obtained a number of software copyright and patent certificates. Based on the profound understanding of China’s garment, luggage and footwear industry, GM series of cutting machine combines the essence of Chinese and foreign technologies, closely combines the advantages of the world's advanced technology and Chinese manufacturing industry, adopts a novel design different from the domestic traditional cutting machine, and fully experiences the design principle of "good at core, simple in shape". After the first continuous drum cutter came into being in the middle part of China , we successively developed the sample cutter for the luggage industry and continuous cutting garment sample cutter.
"The competition of enterprises is the competition of talents."
GEMEI firmly grasps the trend that the world manufacturing
industry is transferring to the middle part of the world, and has
established a research and development team composed of doctors and
senior engineers and other high-quality talents,and insists that
"innovation" is the eternal power of the development of GEMEI.
1. Q: Are you a manufacturer?
A: Yes, we are specializing in the r&d production for template
cutter/inkjet cutter/pen writing cutter/cnc digital fabric
cutter/graph plotter in this field for over 10 years.
2. Q: How do you pack these products?
A: Usually packed in wooden case and can pack according to export
standard or your requirement.
3. Q: Is it customizable?
A: Yes, We have basic sizes commonly applied in the field and can
customize according to your requirements.
4.Q: After-sales service
A: Yes, professional after-sales team and 24-hour technical support
by phone, email or skype
5.Q: What is your lead time?
A: Spot goods usually take 2-4 days, and customization takes 5-7
days
![]() |
